Specification

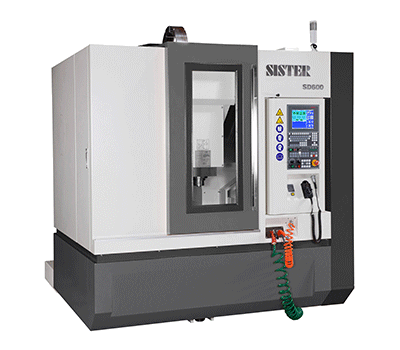

| Model | Unit | SD600 5 axis | |
|---|---|---|---|
| Control | CNC controller | Intek/Mitsubishi/Fanuc | |
| Travel |
X x X-axis/Y x Y-axis/Z x Z-axis | mm | 600/600/320 |
| Table top surface to spindle nose | mm | 80~400 | |
| Linear Guideway type (X/Y/Z) | mm | 45/45/45(THK-Ball type) | |
| Ball screw(X/Y/Z) | mm | ∅40/ ∅40/ ∅40 | |
| Table |
Table work surface area (X-axis x Y-axis) | mm | 600x600 |
| T-Slots (Size x Number x Centre) | 18x4x150 | ||
| Max. work piece weight | Kg | 500 | |
| Feed rate |
Rapid traverse rate X/Y/Z | m/min | 20/20/20 |
| Cutting feed rate | mm | 1-15000 | |
| Minimum input Increment | mm | 0.001 | |
| Spindle |
Spindle holder | HSK-E40 | |
| Spindle motor | Kw | 4.6 | |
| Spindle speed | rpm | 24000/30000 | |
| Cooling Lubrication | Oil/Grease | ||
| A.T.C |
Tool magazine capacity | T | 24 |
| Max. tool weight | Kg | 1.5 | |
| Max. tool length | mm | 150 | |
| Tool selection | Armless | ||
| Motors |
X-axis drive motors | kw | 3.5 |
| Y-axis drive motors | kw | 3.5 | |
| Z- axis drive motors | kw | 3.5 | |
| Others |
Power | KVA | 20 |
| Pneumatic pressure | Kg/cm² | 6 | |
| Cutting pump | HP | 3/4 | |
| Coolant tank capacity | L | 250 | |
| Net weight | Kg | 6500 | |
| Floor space | mm | 2200x2700x2650 | |
| Item/model | unit | PAR-130R | ||
|---|---|---|---|---|
| Color | RAL7035 | |||
| Table Top Diameter | Ø130 | |||
| Center Height in Vertical | mm | 220 | ||
| Overall Length | mm | 275 | ||
| Max. Through Hole Diameter | Ø38 | |||
| Spindle Hole Diameter | mm | Ø30H7 | ||
| Width of Guide Slot | mm | Ø18H7 | ||
| Width of T-Slot | mm | 10H7 | ||
| Tilting Angle Range | degree | +30o~-120o | ||
| Magwetic Valve | AC110V DC24V | |||
| Brakeing | Pneumatic | |||
| Servo Motor | FANUC | HF75T | HF-154T | |
| Gear Ratio | 1:48 | 1:90 | ||
| Min. Indexing Unit | degree | 0.001 | ||
| Max. Speed of Rotation | 200o.p.m | 44.4 | 22.2 | |
| Positioning Accuracy | sec | 60 | 60 | |
| Repeatability | sec | ±3 | ±4 | |
| Brake Torque | Pneumatic | 6kg/cm2 | 7 | 30 |
| Hydraulic | 35kg/cm2 | |||
| Max Load | 70 | |||
| Net Weight | kg | 120 | ||
Close
Standard Accessories
Standard Accessories
- CE mark electrical parts
- Organ type stainless steel telescopic
- Tool change magazine
- Tool measurement device
- Back flush device
- The second story type filter tank
- built –in spindle.
- full cover.
- blowing device for spindle.
- spindle coolant system.
- auto. Lubrication system.
- cutting oil coolant device.
- water Gun、side–way air blower，work lamp.
- hand-on type operation box / 26PIN hand wheel.
- RS232 9PIN INTERFACE.
- USB.
- heating box.
- auto. power of system＋alarm lamp.
- basis bolt and adjusting screw.
- toolbox / operation manual/maintenance manual.
- high speed high accuracy function FTP system.
- Transformer
