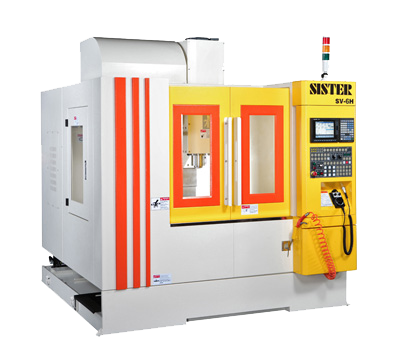

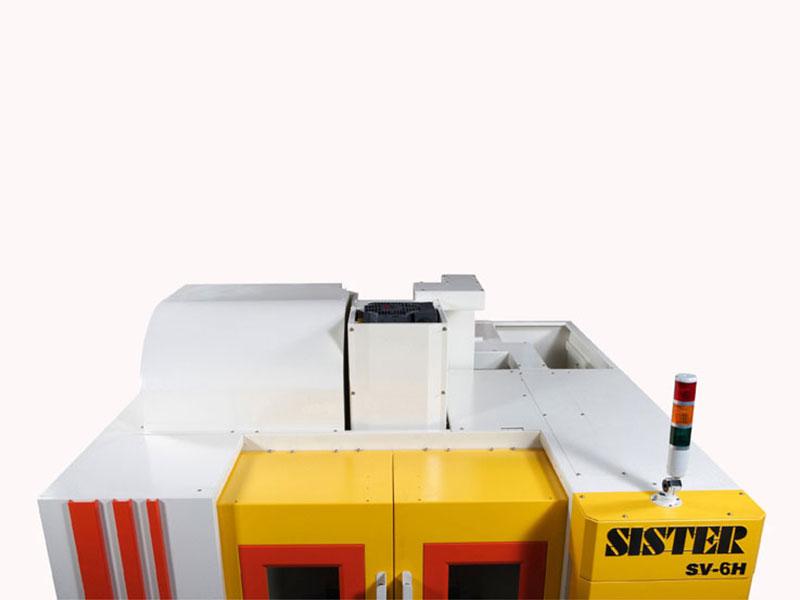

VERTICAL MACHINE CENTER

Feature

The integrally finished Meehanite casting utilizes annealing and abrasive machining to ensure precision and stability.

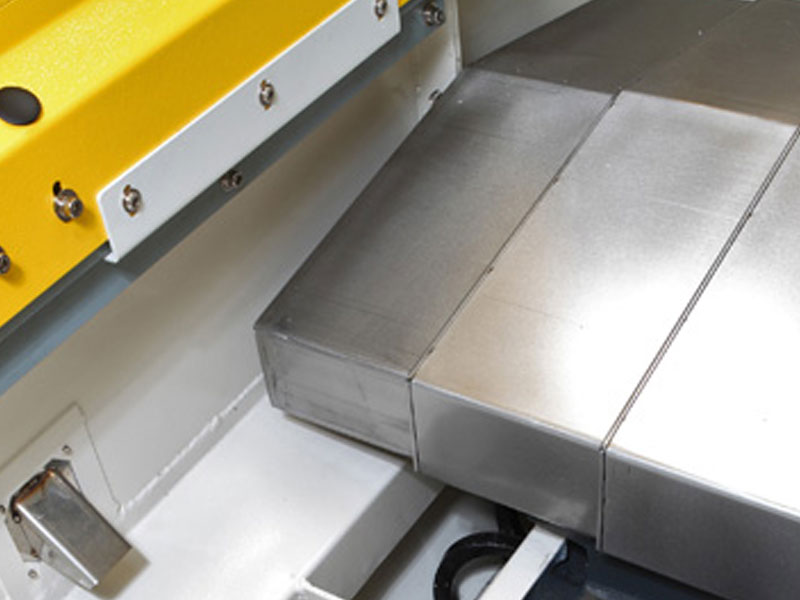

The X, Y, and Z axes are all fitted with heavy-duty roller-type linear guideways, featuring low stick-slip and low friction coefficients. This allows for high feed rates and precise positioning accuracy.
A high-rigidity, wide-range column with integrally finished casting design enhances machining capabilities in various cutting conditions.

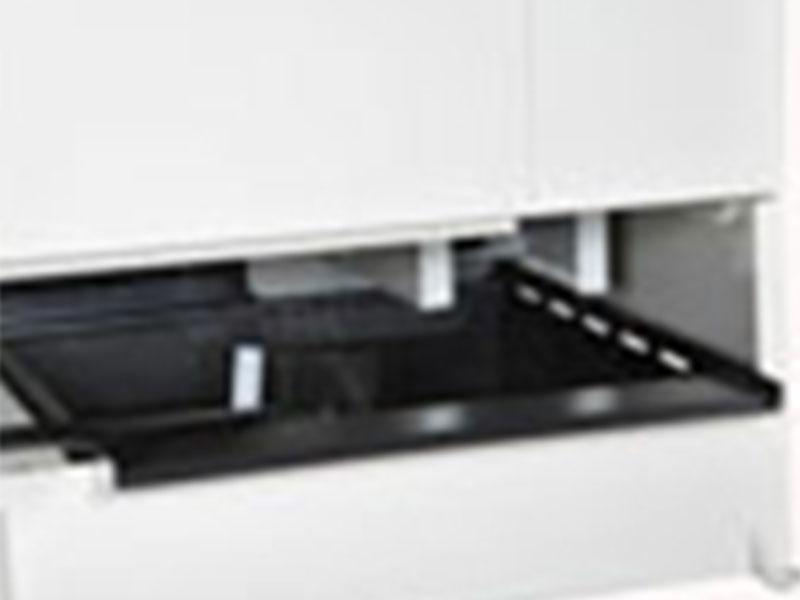

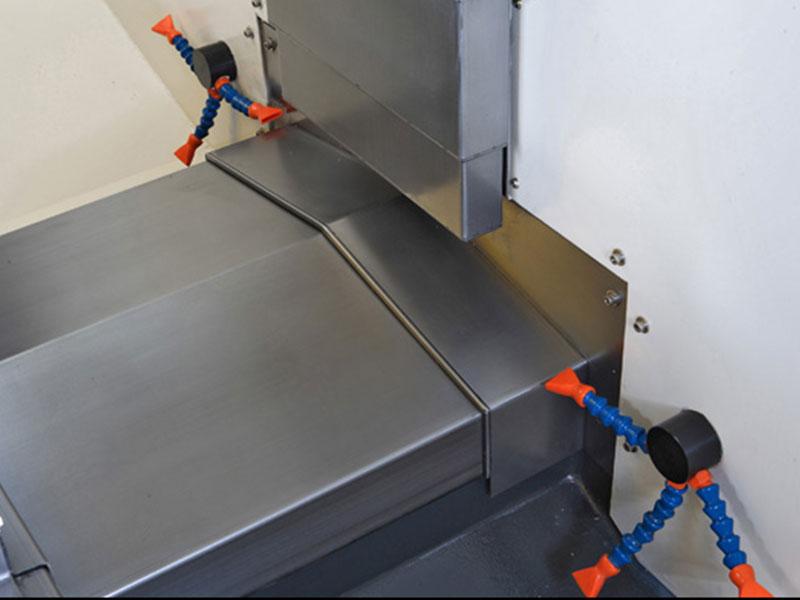

A chip auger is installed at the front of the base, designed to deliver chips out of the machine and prevent chip accumulation.
Specially designed for high-speed cutting of hardened metals and tough machining applications.

MODEL		Unit	SV6H
controller			Mitsubishi/ Fanuc
Motor	x-axis motor	kw	1.5 KW
	Y-axis motor	kw	1.5 KW
	z-axis motor	kw	525
Spindle	Spindle Motor (Con./30 min)	Kw/HP	5.5/7.5(7.5/11) KW High /Low Winding Switching
	Spindle taper		BT40 /HSK
	Spindle type		Direct drive
	Spindle speed		10000/ (12000, 15000, 30000) opt.
Table	Table size	mm	750*450
	T-slot (WidthNo.Pitch)	mm	163125
	Max. work piece weight	kg	200
Travel	X/Y/Z axis Travel	mm	650/400/500
	Spindle Nose to work distance. Min- Max.	mm	120~620
	Spindle Center to Column surface distance	mm	525
	Linear Guide type X/Y/Z	mm	30/30/35
	Cooling / Lubrication		Oil/grease
FEED RATE	Rapid traverse x/y/z	mm/min	30/30/24
	Cutting feed rate	Mm/min	1-10000
	Min. Resolution	mm	0.001
Tool	Max. tool Length	mm	300 mm
	Max. Tool diameter	mm	∅77(127)
	Max. tool weight	Kg	7
	Tool selection		Random
	Tool magazine arm type	capacity	24

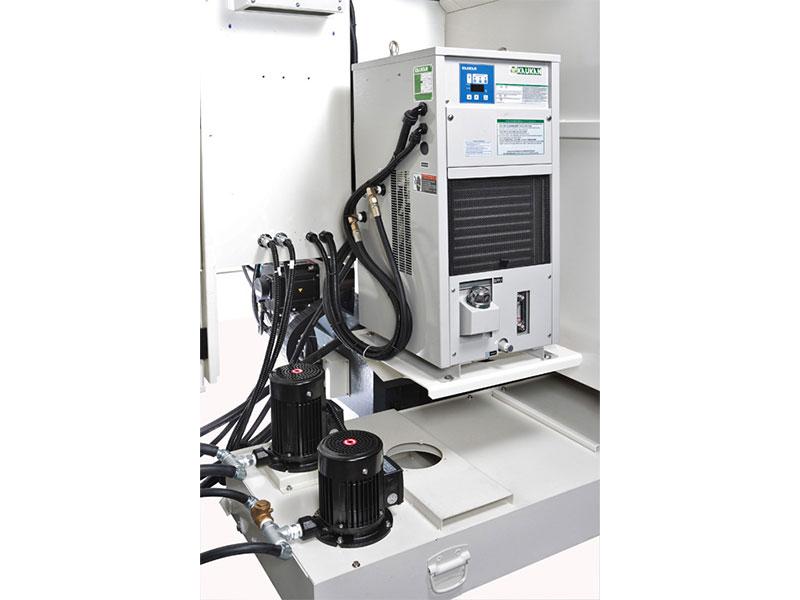

Other	Coolant tank capacity	L	180
	Pneumatic pressure	Kg/cm	6
	Coolant motor power	HP	3/4
	Thru spindle coolant		290Psi(20bar)
Machine size	Machine net weight	kg	3400
	Floor space of machine	mm	1980*2400
	Power	KVA	25
